MHV シリーズ
MHVシリーズは、小型の出力電圧可変型、中高圧電源です。 5面金属シールドケースを採用しながら、小型化を実現した、低リップル電圧、長寿命の高信頼性電源です。 UL／c-UL対応品です。
特徴
- 低リップルノイズ30～50mV
- 出力電圧0～100％可変
- 制御電圧0～+4V
- 絶制御抵抗 5kΩ可変抵抗
- 5面金属シールドケース採用
- 短絡、過電流保護回路付
- UL/C-UL認定
- 動作温度 -10℃～+60℃ (温度ディレーティング要)
- RoHS指令対応

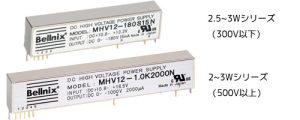

MHV2.5-3W Series
| Model | Input Voltage Vdc[V] | Output Voltage Vdc[V] | Output Current [mA] | Load Resistance. [kΩ](min.) | Output Capacity [W] | Input Voltage [mA](typ.) | Noise [mVp-p](typ.) | Size (WxDxH/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| MHV12-180S15P | 10.8 to 13.2 | 0 to +180 | 0 to 15 | 12 | 2.8 | 350 | 30 | 80x12x19.75 |  | DigiKey chip1stop corestaff |
| MHV12-180S15N | 0 to -180 | 0 to 15 | 12 | 2.7 | 350 | DigiKey chip1stop corestaff |
||||
| MHV12-300S10P | 0 to +300 | 0 to 10 | 30 | 3.0 | 395 | DigiKey chip1stop corestaff |
||||
| MHV12-300S10N | 0 to -300 | 0 to 10 | 30 | 3.0 | 395 | DigiKey chip1stop corestaff |
||||
| MHV12-350S07P | 0 to +350 | 0 to 7 | 50 | 2.5 | 330 | DigiKey chip1stop corestaff |
||||
| MHV12-350S07N | 0 to -350 | 0 to 7 | 50 | 2.5 | 330 | DigiKey chip1stop corestaff |
MHV2-2.6W Series
| Model | Input Voltage Vdc[V] | Output Voltage Vdc[V] | Output Current [mA] | Load Resistance. [kΩ](min.) | Output Capacity [W] | Input Current [mA](typ.) | Noise [mVp-p](typ.) | Size (W*D*H/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| MHV12-470S06P | 10.8 to 13.2 | 0 to +470 | 0 to 5.6 | 83.3 | 2.6 | 390 | 40 | 110x12x19.75 | | DigiKey chip1stop corestaff |
| MHV12-470S06N | 0 to -470 | 0 to 5.6 | 83.3 | 2.6 | 390 | 40 | DigiKey chip1stop corestaff |
|||
| MHV12-1.0K2000P | 10.8 to 16.5 | 0 to +1000 | 0 to 2 | 500 | 2.0 | 280 | 30 | DigiKey chip1stop corestaff |
||
| MHV12-1.0K2000N | 0 to -1000 | 0 to 2 | 500 | 2.0 | 280 | 30 | DigiKey chip1stop corestaff |
|||
| MHV12-1.5K1300P | 0 to +1500 | 0 to 1.3 | 1150 | 2.0 | 290 | 30 | DigiKey chip1stop corestaff |
|||
| MHV12-1.5K1300N | 0 to -1500 | 0 to 1.3 | 1150 | 2.0 | 290 | 30 | DigiKey chip1stop corestaff |
|||
| MHV12-2.0K1000P | 0 to +2000 | 0 to 1 | 2000 | 2.0 | 340 | 50 | DigiKey chip1stop corestaff |
|||
| MHV12-2.0K1000N | 0 to -2000 | 0 to 1 | 2000 | 2.0 | 340 | 50 | DigiKey chip1stop corestaff |
