BT シリーズ

BTシリーズは、小型、高効率の絶縁型 DCDCコンバータです。 ワイド入力対応製品で4.5V~76Vの入力電圧に対応できます。 出力電力も1.5W~10Wまでと選択肢が豊富で、様々な場面ごとに最適なコンバータをお選び頂けます。
UL/c-UL対応品です。

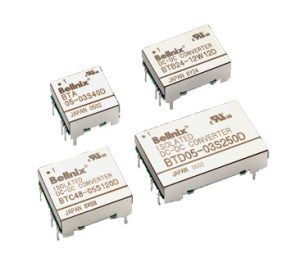

photo_BT

特徴

  • 出力電圧可変機能付き
  • ON/OFF制御機能付き
  • デュアル電源をシングル電源として使用可能
  • 絶縁耐圧 AC500V
  • 過電流保護回路内蔵
  • 低入力電圧保護機能
  • 電解コン、タンタルコン不使用
  • 金属シールドカバー付き
  • 動作温度 -40℃~+85℃ (温度ディレーティング要)
  • RoHS指令対応
  • UL/C-UL認定

BTA series

ModelInput Voltage
Vdc[V]
Output Voltage
Vdc[V]
Output Current
[mA]
Line Reg.
[%](typ.)
Load Reg.
[%](typ.)
Noise
[mVp-p](typ.)
Efficiency
[%](typ.)
DIP Size
(W*D*H/mm)
SMD Size
(W*D*H/mm)
DatasheetPurchase
BTA05-03S40 4.5 to 93.30 to 4000.61.2407116.6x16.8x8.416.6x19.8x8.5DigiKey
chip1stop
corestaff
BTA05-05S30 50 to 3000.40.84077
BTA05-12S12 12 (15)0 to 125 (100)0.350.853080
BTA05-12W06 +/-12 (+/-15)0 to 60 (50)0.753079
BTA12-03S40 9 to 183.30 to 4000.61.24073
BTA12-05S30 50 to 3000.40.84078
BTA12-12S12 12 (15)0 to 125 (100)0.350.853082
BTA12-12W06 +/-12 (+/-15)0 to 60 50)0.753081
BTA24-03S40 18 to 363.30 to 4000.61.24072
BTA24-05S30 50 to 3000.40.84077
BTA24-12S12 12 (15)0 to 125 (100)0.350.853081
BTA24-12W06 +/-12 (+/-15)0 to 60 (50)0.753079
BTA48-03S40 36 to 763.30 to 4000.61.24070
BTA48-05S30 50 to 3000.40.84075
BTA48-12S12 12 (15)0 to 125( 100)0.350.853080
BTA48-12W06 +/-12 (+/-15)0 to 60 (50)0.753079

注記:詳細につきましては、データーシートをご確認ください。
不使用証明書.pdf

BTB Series

ModelInput Voltage
Vdc[V]
Output Voltage
Vdc[V]
Output Current
[mA]
Line Reg.
[%](typ.)
Load Reg.
[%](typ.)
Noise
[mVp-p](typ.)
Efficiency
[%](typ.)
DIP Size
(W*D*H/mm)
SMD Size
(W*D*H/mm)
DatasheetPurchase
BTB05-03S80 4.5 to 93.30 to 8000.61.2407316.6x23.2x8.416.6x26.2x8.5DigiKey
chip1stop
corestaff
BTB05-05S60 50 to 6000.40.84077
BTB05-12S25 12 (15)0 to 250 (200)0.350.853082
BTB05-12W12 +/-12 (+/-15)0 to 125 (100)0.753080
BTB12-03S80 9 to 183.30 to 8000.61.24074
BTB12-05S60 50 to 6000.40.84079
BTB12-12S25 12 (15)0 to 250 (200)0.350.853082
BTB12-12W12 +/-12 (+/-15)0 to 125 (100)0.753081
BTB24-03S80 18 to 363.30 to 8000.61.24073
BTB24-05S60 50 to 6000.40.84078
BTB24-12S25 12 (15)0 to 250 (200)0.350.853082
BTB24-12W12 +/-12 (+/-15)0 to 125 (100)0.753081
BTB48-03S80 36 to 763.30 to 8000.61.24073
BTB48-05S60 50 to 6000.40.84079
BTB48-12S25 12 (15)0 to 250 (200)0.350.853081
BTB48-12W12 +/-12 (+/-15)0 to 125 (100)0.753080

注記:詳細につきましては、データーシートをご確認ください。
不使用証明書.pdf

BTC Series

ModelInput Voltage
Vdc[V]
Output Voltage
Vdc[V]
Output Current
[mA]
Line Reg.
[%](typ.)
Load Reg.
[%](typ.)
Noise
[mVp-p](typ.)
Efficiency
[%](typ.)
DIP Size
(W*D*H/mm)
SMD Size
(W*D*H/mm)
DatasheetPurchase
BTC05-03S120 4.5 to 93.30 to 12000.61.2407621.1x23.2x8.421.1x26.2x8.5DigiKey
chip1stop
corestaff
BTC05-05S100 50 to 10000.40.84079
BTC05-12S50 12 (15)0 to 500 (400)0.350.853082
BTC05-12W25 +/-12 (+/-15)0 to 250 (200)0.753082
BTC12-03S120 9 to 183.30 to 12000.61.24078
BTC12-05S120 50 to 12000.40.84082
BTC12-12S50 12 (15)0 to 500 (400)0.350.853085
BTC12-12W25 +/-12 (+/-15)0 to 250 (200)0.753085
BTC24-03S120 18 to 363.30 to 12000.61.24077
BTC24-05S120 50 to 12000.40.84081
BTC24-12S50 12 (15)0 to 500 (400)0.350.853087
BTC24-12W25 +/-12 (+/-15)0 to 250 (200)0.753086
BTC48-03S120 36 to 763.30 to 12000.61.24077
BTC48-05S120 50 to 12000.40.84081
BTC48-12S50 12 (15)0 to 500 (400)0.350.853086
BTC48-12W25 +/-12 (+/-15)0 to 250 (200)0.753086

注記:詳細につきましては、データーシートをご確認ください。
不使用証明書.pdf

BTD series

ModelInput Voltage
Vdc[V]
Output Voltage
Vdc[V]
Output Current
[mA]
Line Reg.
[%](typ.)
Load Reg.
[%](typ.)
Noise
[mVp-p](typ.)
Efficiency
[%](typ.)
DIP Size
(W*D*H/mm)
SMD Size
(W*D*H/mm)
DatasheetPurchase
BTD05-03S250 4.5 to 93.30 to 25000.61.2408422.6x35.9x8.422.6x38.9x8.5DigiKey
chip1stop
corestaff
BTD05-05S200 50 to 20000.40.84084
BTD05-12S80 12 (15)0 to 800 (640)0.350.853084
BTD05-12W40 +/-12 (+/-15)0 to 400 (320)0.753083
BTD12-03S250 9 to 183.30 to 25000.61.24084
BTD12-05S200 50 to 20000.40.84086
BTD12-12S100 12 (15)0 to 1000 (800)0.350.853088
BTD12-12W45 +/-12 (+/-15)0 to 450 (360)0.753083
BTD24-03S250 18 to 363.30 to 25000.61.24084
BTD24-05S200 50 to 20000.40.84086
BTD24-12S100 12 (15)0 to 1000 (800)0.350.853087
BTD24-12W45 +/-12 (+/-15)0 to 450 (360)0.753086
BTD48-03S250 36 to 763.30 to 25000.61.24084
BTD48-05S200 50 to 20000.40.84086
BTD48-12S100 12 (15)0 to 1000 (800)0.350.853088
BTD48-12W45 +/-12 (+/-15)0 to 450 (360)0.753086

注記:詳細につきましては、データーシートをご確認ください。
不使用証明書.pdf
