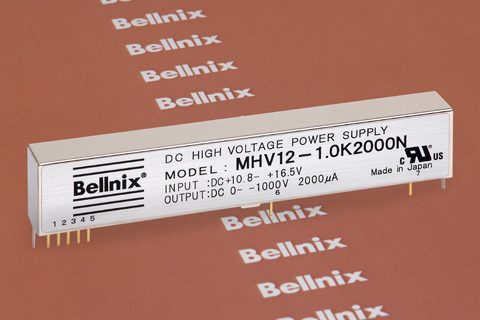

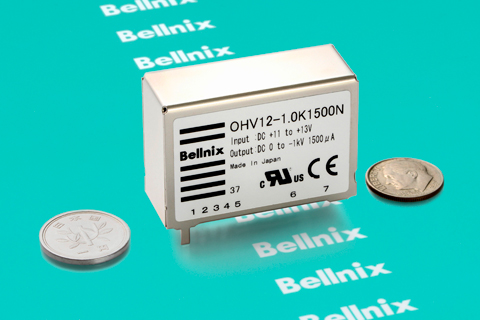

Bellnix’s BYH, MHV, and PHV series are the industry’s first ultra-compact medium-to-high voltage power supply modules (HIC) that use the latest SMT (surface mount technology). These products have been successfully miniaturized to the 1/6 size of conventional products by making full use of the combined technologies of high voltage, magnetic materials, and surface mount technology. The output voltage of BYH, MHV, and PHV series can be adjusted from approximately 0V to the maximum rated voltage. The voltage adjustment can be either by an external variable resistor or by applying an external voltage.
Features
- Various series from 100V to 2000V
- World’s first module of medium-high voltage power supply
- High density and high withstand voltage achieved by the latest surface mounting technology
- Adjustable output voltage from 0V (All products)
- 5-sided metal shielded
- ON/OFF control (varies by product)
- Low noise and small ripple
- Short-circuit and overcurrent protection
- High performance and high reliability
- Long lifetime
High Voltage Power Supply Series
| Model Number | Input Voltage | Output Voltage | Output Current | Power | Number of Output | Package Type | Withstand voltage | Ripple Noise | Efficiency | Size (mm) | Data sheet | Purchase (Distributors) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
10.8 to 16.5V | 0 to +/-500V, 0 to +/-350V, 0 to +/-2000V, 0 to +/-1000V | 0 to 10mA, 0 to 5mA, 0 to 2.5mA | 5.0W, 3.5W | Single | DIP | - | 100mVp-p, 160mVp-p | 68%, 72% | 60 x 40 x 15mm, 60 x 40 x 20mm | |||
24V | 0 to +/-15000V, 0 to +/-10000V | 0 to 700μA, 0 to 450μA | 7W | Single | Unit | - | 100mVp-p | - | 100 x 180 x 38mm | |||
10.8 to 16.5V, 10.8 to 13.2V | 0 to +/-350V, 0 to +/-300V, 0 to +/-180V, 0 to +/-2000V, 0 to +/-1500V, 0 to +/-1000V, 0 to +/-470V | 0 to 15mA, 0 to 10mA, 0 to 7mA, 0 to 5.6mA, 0 to 2mA, 0 to 1.3mA, 0 to 1mA | 2.0 to 2.6W, 2.5 to 3.0W | Single | SIP | - | 30mVp-p, 40mVp-p, 50mVp-p | - | 80 x 12 x 19.75mm, 110 x 12 x 19.75mm | |||
4.75 to 5.25V, 11.0 to 16.0V | 0 to 200V, 0 to 100V | 0 to 2mA, 0 to 1mA | 0.2W | Single | DIP | DC250V | 10mVp-p | - | 32.6 x 20.42 x 10.3mm | |||
11 to 13V | 0 to +/-2000V, 0 to +/-1500V, 0 to +/-1000V | 0 to 700μA, 0 to 1.5mA, 0 to 1mA | 1.5W | Single | SIP | Non-isolated | 5mVp-p, 7mVp-p, 10mVp-p | - | 44 x 30 x 16mm |
