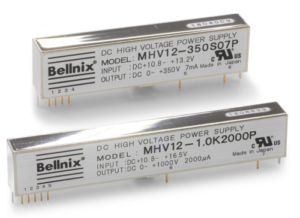

MHV Series
The MHV series are compact, output-voltage-adjustable, medium-to-high voltage power supplies. These highly reliable power supplies feature low ripple voltage and long life using a 5-sided metal shielded case. UL/c-UL compliant.
Features
- Low ripple noise; 30 to 50mV
- Output voltage; 0 to 100% adjustable
- Control voltage; 0 to +4V
- Control resistance; 5kΩ variable resistor
- 5-sided metal shielded
- Short-circuit and overcurrent protection
- UL/c-UL compliant
- Operating temperature; -10°C to +60°C (temperature derating required)
- RoHS compliant
MHV2.5-3W Series
| Model | Input Voltage Vdc[V] | Output Voltage Vdc[V] | Output Current [mA] | Load Resistance. [k-ohm](min.) | Output Power [W] | Input Voltage [mA](typ.) | Noise [mVp-p](typ.) | Size (WxDxH/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| MHV12-180S15P | 10.8 to 13.2 | 0 to +180 | 0 to 15 | 12 | 2.8 | 350 | 30 | 80x12x19.75 |  | DigiKey chip1stop corestaff |
| MHV12-180S15N | 0 to -180 | 0 to 15 | 12 | 2.7 | 350 | DigiKey chip1stop corestaff |
||||
| MHV12-300S10P | 0 to +300 | 0 to 10 | 30 | 3.0 | 395 | DigiKey chip1stop corestaff |
||||
| MHV12-300S10N | 0 to -300 | 0 to 10 | 30 | 3.0 | 395 | DigiKey chip1stop corestaff |
||||
| MHV12-350S07P | 0 to +350 | 0 to 7 | 50 | 2.5 | 330 | DigiKey chip1stop corestaff |
||||
| MHV12-350S07N | 0 to -350 | 0 to 7 | 50 | 2.5 | 330 | DigiKey chip1stop corestaff |
MHV2-2.6W Series
| Model | Input Voltage Vdc[V] | Output Voltage Vdc[V] | Output Current [mA] | Load Resistance. [k-ohm](min.) | Output Power [W] | Input Current [mA](typ.) | Noise [mVp-p](typ.) | Size (W*D*H/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| MHV12-470S06P | 10.8 to 13.2 | 0 to +470 | 0 to 5.6 | 83.3 | 2.6 | 390 | 40 | 110x12x19.75 | | DigiKey chip1stop corestaff |
| MHV12-470S06N | 0 to -470 | 0 to 5.6 | 83.3 | 2.6 | 390 | 40 | DigiKey chip1stop corestaff |
|||
| MHV12-1.0K2000P | 10.8 to 16.5 | 0 to +1000 | 0 to 2 | 500 | 2.0 | 280 | 30 | DigiKey chip1stop corestaff |
||
| MHV12-1.0K2000N | 0 to -1000 | 0 to 2 | 500 | 2.0 | 280 | 30 | DigiKey chip1stop corestaff |
|||
| MHV12-1.5K1300P | 0 to +1500 | 0 to 1.3 | 1150 | 2.0 | 290 | 30 | DigiKey chip1stop corestaff |
|||
| MHV12-1.5K1300N | 0 to -1500 | 0 to 1.3 | 1150 | 2.0 | 290 | 30 | DigiKey chip1stop corestaff |
|||
| MHV12-2.0K1000P | 0 to +2000 | 0 to 1 | 2000 | 2.0 | 340 | 50 | DigiKey chip1stop corestaff |
|||
| MHV12-2.0K1000N | 0 to -2000 | 0 to 1 | 2000 | 2.0 | 340 | 50 | DigiKey chip1stop corestaff |
