| Model | Input Voltage Vdc[V] | Input Current [A](typ.) | Output Voltage Vdc[V] | Output Current [mA] | Line Reg. [%](typ.) | Ripple Noise [mVp-p](typ.) | Load Resistance. [k-ohm](min.) | Size (WxDxH/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| OHV12-1.0K1500P | 11.0 to 13.0 | 0.22 | 0 to +1000 | 0 to 1.5 | 0.01 | 5 | 666.7 | 44x30x16 |  | DigiKey chip1stop corestaff |
| OHV12-1.0K1500N | 0.22 | 0 to -1000 | 0 to 1.5 | 5 | 666.7 | DigiKey chip1stop corestaff |
||||
| OHV12-1.5K1000P | 0.23 | 0 to +1500 | 0 to 1.0 | 7 | 1500 | DigiKey chip1stop corestaff |
||||
| OHV12-1.5K1000N | 0.25 | 0 to -1500 | 0 to 1.0 | 7 | 1500 | DigiKey chip1stop corestaff |
||||
| OHV12-2.0K700P | 0.28 | 0 to +2000 | 0 to 0.7 | 10 | 2857 | DigiKey chip1stop corestaff |
||||
| OHV12-2.0K700N | 0.28 | 0 to -2000 | 0 to 0.7 | 10 | 2857 | DigiKey chip1stop corestaff |

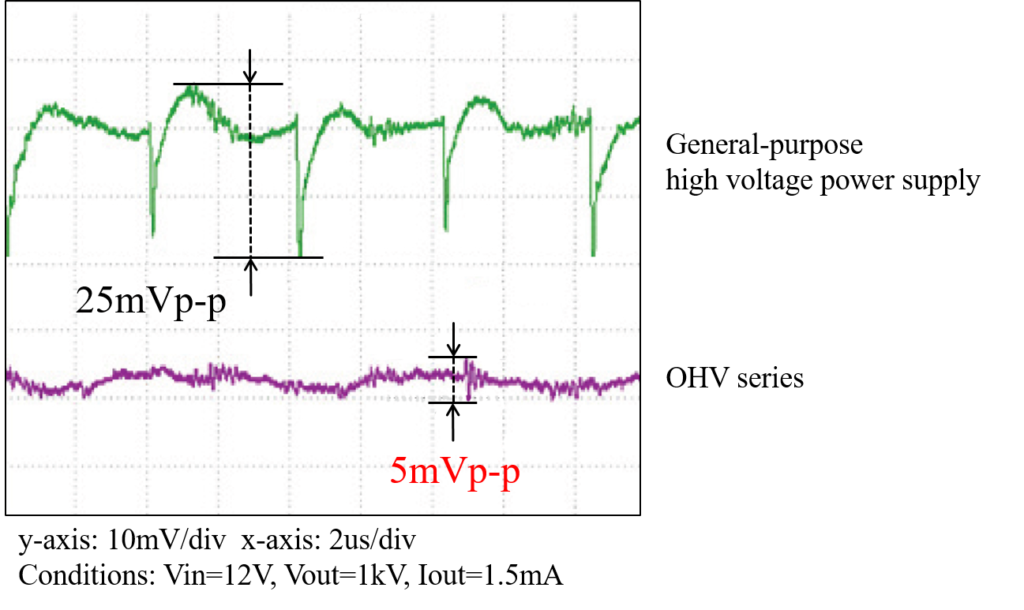

Semiconductor production equipment and blood analyzers using photomultiplier tubes require low-noise, high-voltage power supplies because power supply noise affects the detection capability of the equipment.

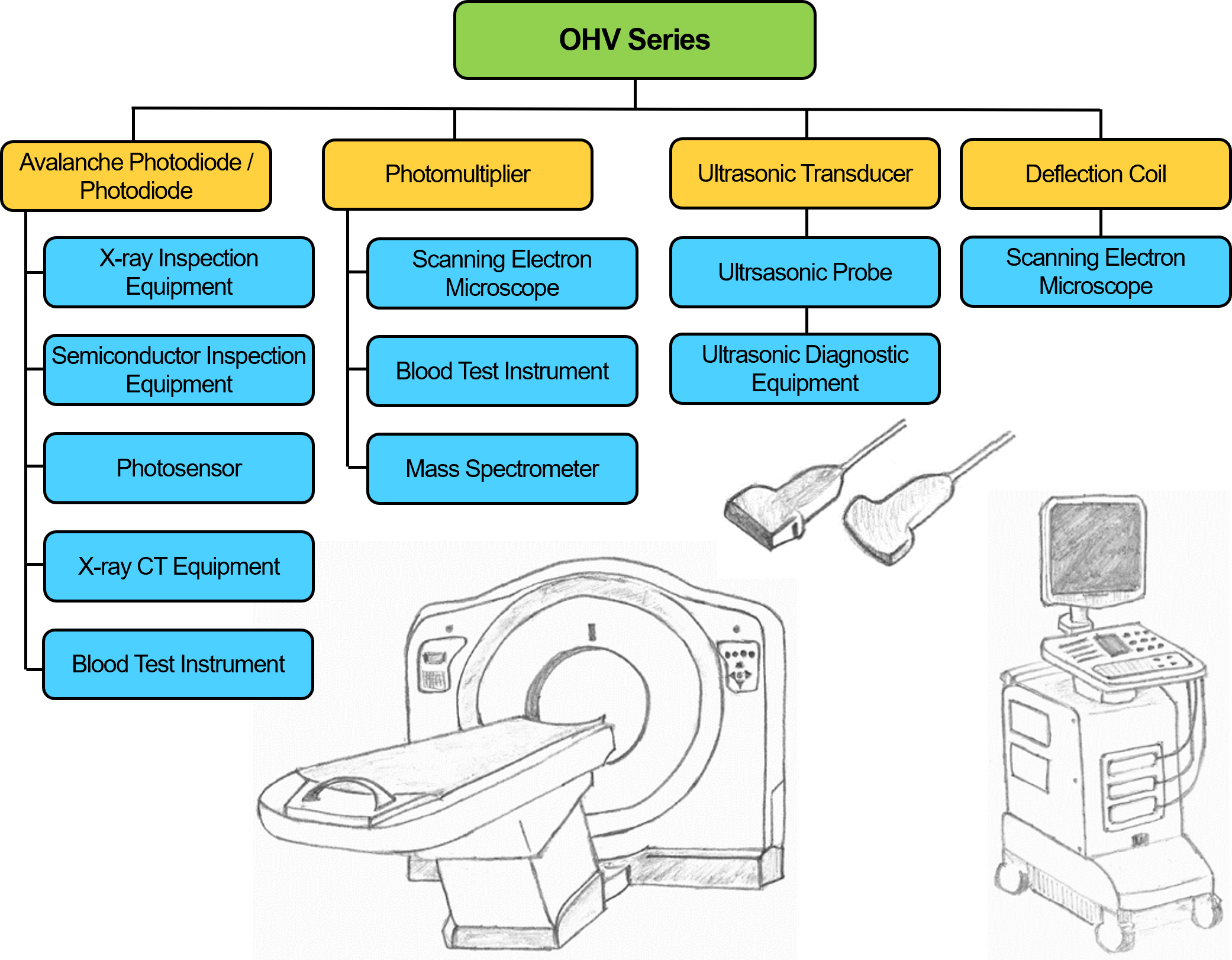

Many of the focused applications are measurement instruments and diagnostic equipment that use high-voltage power supplies such as OHVs, requiring stability (small ripple) for the precision of the equipment.
