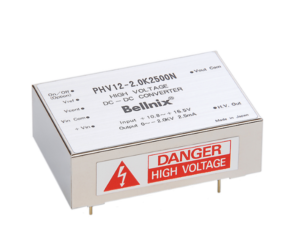

PHV Series
Small size has been realized due to high efficiency by adopting a resonant PWM technology. Output voltage adjustable from 0V to 350V. These products are long life and highly reliable medium-high voltage power supplies. Radiation noise is also suppressed by the resonant PWM technology and 5-sided metal shield.
Features
- Low ripple noise; 60 to 160mVp-p
- Output voltage; 0 to 100% adjustable
- ON/OFF control (optional)
- Control resistance; 5kΩ variable resistor
- 5-sided metal shielded
- Short-circuit and overcurrent protection
- Operating temperature; -10°C to +50°C (temperature derating required)
- RoHS compliant
PHV3.5W Series
PHV5W Series
| Model | Input Voltage Vdc[V] | Input Current [mA](typ.) | Output Voltage Vdc[V] | Output Current [mA] | Line Reg. [%](typ.) | Noise [mVp-p](typ.) | Size (W*D*H/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|
| PHV12-0.5K10000P | 10.8 to 16.5 | 580 | 0 to +500 | 0 to 10 | 0.01 | 100 | 60x40x20 |  | DigiKey chip1stop corestaff |
| PHV12-0.5K10000N | 0 to -500 | 0 to 10 | DigiKey chip1stop corestaff |
||||||
| PHV12-1.0K5000P | 0 to +1000 | 0 to 5 | DigiKey chip1stop corestaff |
||||||
| PHV12-1.0K5000N | 0 to -1000 | 0 to 5 | DigiKey chip1stop corestaff |
||||||
| PHV12-2.0K2500P | 0 to +2000 | 0 to 2.5 | 160 | DigiKey chip1stop corestaff |
|||||
| PHV12-2.0K2500N | 0 to -2000 | 0 to 2.5 | DigiKey chip1stop corestaff |
