Isolated Type DC-DC converters
Isolated Type DC-DC converters

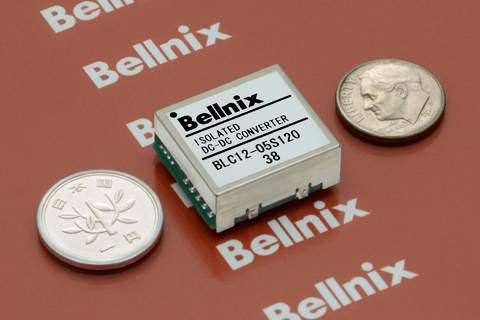

Bellnix’s isolated DC-DC converters have the features of ultra-small size, ultra-low noise, high isolation, and wide operating temperature range. The “BR-LB series” that employs our unique TCT circuit achieves ultra-low noise (3mVp-p) and is used for Japanese train control “ATS” system, etc.
Features
- Ultra low noise
- High isolation voltage
- Wide range of input voltage
- High power density and small size
- Metallic shield case : 5 or 6 sided shield
Isolated Type DC-DC converter Series
| Model Number | Input Voltage | Output Voltage | Output Current | Power | Number of Output | Package Type | Withstand voltage | Ripple Noise | Efficiency | Size (mm) | Data sheet | Purchase (Distributors) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.75 to 6V | 9V, +/-15V, +/-12V, 5V | 0 to 300mA, 0 to 160mA, 0 to 120mA, 0 to 100mA, 0 to 80mA, 0 to 65mA, 0 to 53mA | - | Single, Dual | DIP | DC500V | 8mVp-p, 10mVp-p | 45%, 60% | 20.42 x 32.6 x 10.3mm | |||
4.75 to 6V | +/-15V | 0 to +/-70mA | 2W | Dual | DIP | DC500V | 8mVp-p | 60% | 49.0 x 20 x 9.8mm | |||
4.75 to 6V | +/-15V, +/-12V | 0 to 250mA, 0 to 208mA, 0 to 200mA, 0 to 167mA, 0 to 125mA, 0 to 100mA | 5.0W | Dual | DIP | DC500V | 3mVp-p | 64% | 51.3 x 51.3 x 9.8mm | |||
36 to 76V, 18 to 36V, 9 to 18V, 4.5 to 9V | 12V, 3.3V, +/-12V, 5V | 0 to 2500mA, 0 to 2000mA, 0 to 1200mA, 0 to 1000mA, 0 to 800mA, 0 to 600mA, 0 to 500mA, 0 to 400mA, 0 to 300mA, 0 to 250mA, 0 to 125mA, 0 to 60mA | 10W, 3W, 6W, 1.5W | Single | DIP, SMD | AC500V | 30mVp-p, 40mVp-p | 72 to 82% | 17.3 x 17.1 x 12mm, 17.3 x 17.1 x 8.5mm | |||
9 to 18V, 4.5 to 9V, 3 to 9V | 12V, +/-12V, 5V | 0 to 1200mA, 0 to 1000mA, 0 to 500mA, 0 to 300mA, 0 to 250mA, 0 to 125mA, 0 to 60mA | 6W, 1.5W | Single, Dual | DIP | AC500V | 5mVp-p, 7mVp-p, 8mVp-p | 77 to 83％ | 20.3 x 14.0 x 9.7mm, 23.2 x 21.1 x 10.0mm | |||
48V, 24V | +/-15V, 3.3V, +/-12V, 5V | 7A, 6A, 4A, 3A, 2.5A, 2A, 1.3A, 1A, 1.25A x2, 0.65A x2, 0.5A x2, 1A x2 | 15W, 30W | Single, Dual | DIP | DC1500V | 10 to 30mVp-p | 85 to 92% | 25.4 x 25.4 x 9.9mm |
