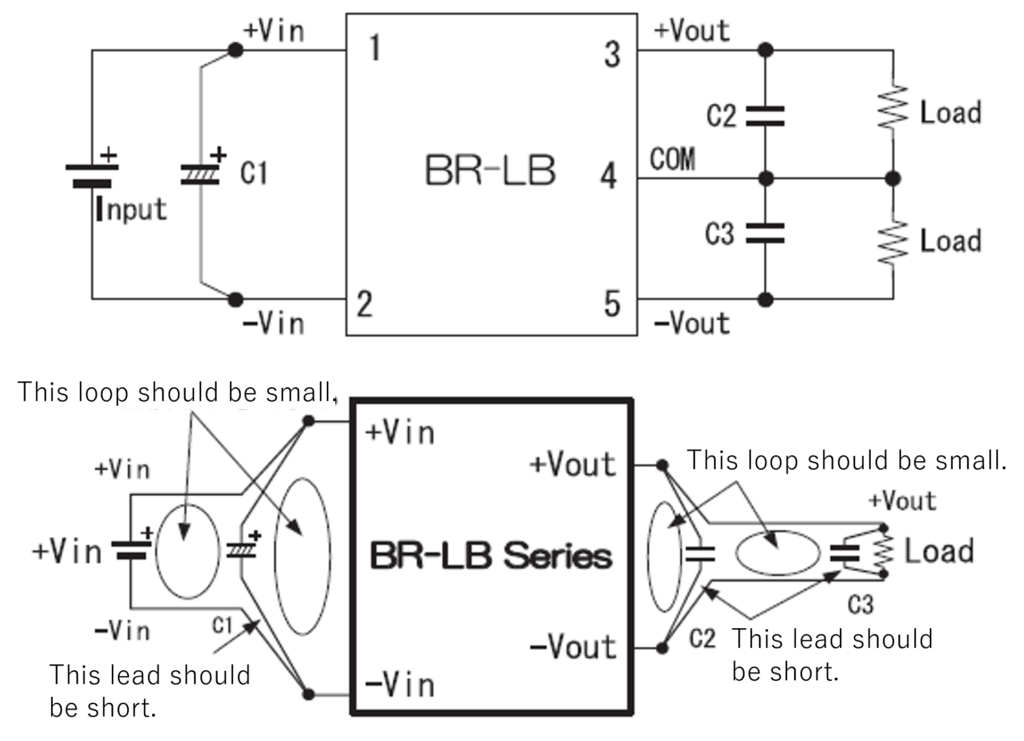

・Recommended Capacitors
C1 = 100μF C2,C3 = 1μF
Although any external capacitors are basically not required, the (total) noise can be reduced by reducing the power line impedance and load line impedance.
BR-LB Series
These products are very low noise isolated DC-DC converters. The output noise of 3mVp-p has been realized by adopting a patented resonant circuit. Radiation noise is also suppressed by 5-side shielded metal case. Those are very reliable and are suitable for noise separation between analog and digital circuits. It is also suitable for the amplifier used in a measurement instrument, that amplifies small signals.
Features
- Very low noise; 3mVp-p
- Suitable for analog and digital mixed circuit
- Short-circuit/overcurrent protection
- No electrolytic and tantalum capacitors
- 5-sided metal shielded
- EMI line filter
- Over temperature protection
- Long life due to TCT patented circuit
- Withstand voltage; DC500V
- Very small drift; 50 mV/8H
- Temperature coefficient; +/-0.02%/°C
- Operating temperature; -20°C to +70°C (temperature derating required)
- RoHS compliant
BR-LB Series
| Model | Input Voltage Vdc[V] | Output Voltage : Current Vdc[V] : [mA] | Output Voltage : Current -Vdc[V] : [mA] | Line Reg. [%](typ.) | Load Reg. [%](typ.) | Noise [mVp-p](typ.) | Efficiency [%](typ.) | Size (W*D*H/mm) | Datasheet | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| BR05-1220LB | 4.75 to 6 | +12 : 208 | -12 : -208 | 0.03 | 0.18 | 3 | 64 | 51.3x51.3x9.8 |  | DigiKey chip1stop corestaff |
| BR05-1225LB | +12 : 250 | -12 : -125 | DigiKey chip1stop corestaff |
|||||||
| BR05-1516LB | +15 : 167 | -15 : -167 | DigiKey chip1stop corestaff |
|||||||
| BR05-1520LB | +15 : 200 | -15 : -100 | DigiKey chip1stop corestaff |
