BYH Series

The BYH series products are medium to high voltage DC-DC converters with adjustable output voltage from 0V to 100V or from 0V to 200V. The ultra-low noise of 10mVp-p has been realized by adopting original circuitries.
Further, as the outputs are floating, the outputs can be used as either + or – outputs depending on pin connection.

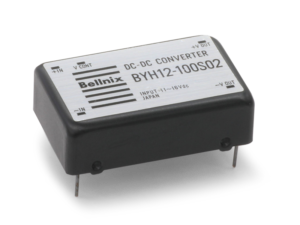

BYH (2)_2

Features

  • Low ripple noise; 10mVp-p
  • Output voltage 0% to ;100% adjustable
  • Control voltage; BYH05=0 to +3V BYH12=0 to +10V
  • Floating output
  • Short-circuit and overcurrent protection
  • Input/output isolation; DC250V
  • MTBF; 1.4 million hours
  • Operating temperature; -10°C to +60°C (temperature derating required)
  • RoHS compliant

BYH Series

ModelInput Voltage
[VDC]		Input Current
[mA](typ.)		Output Voltage Range
[VDC]		Line Reg.
[%](typ/)		Load Reg.
[%](typ.)		Ripple Noise
[mVpp](typ.)		Efficiency
[%](typ.)		Size
(WxDxH/mm)		DatasheetPurchase
BYH05-100S024.75 to 5.25900 to 1000 to 20.3100 to 332.6x20.42x10.3DigiKey
chip1stop
corestaff
BYH12-100S0211.0 to 16.0340 to 1000 to 20 to 10DigiKey
chip1stop
corestaff
BYH05-200S014.75 to 5.25980 to 2000 to 10 to 3DigiKey
chip1stop
corestaff
BYH12-200S0111.0 to 16.0410 to 2000 to 10 to 10DigiKey
chip1stop
corestaff

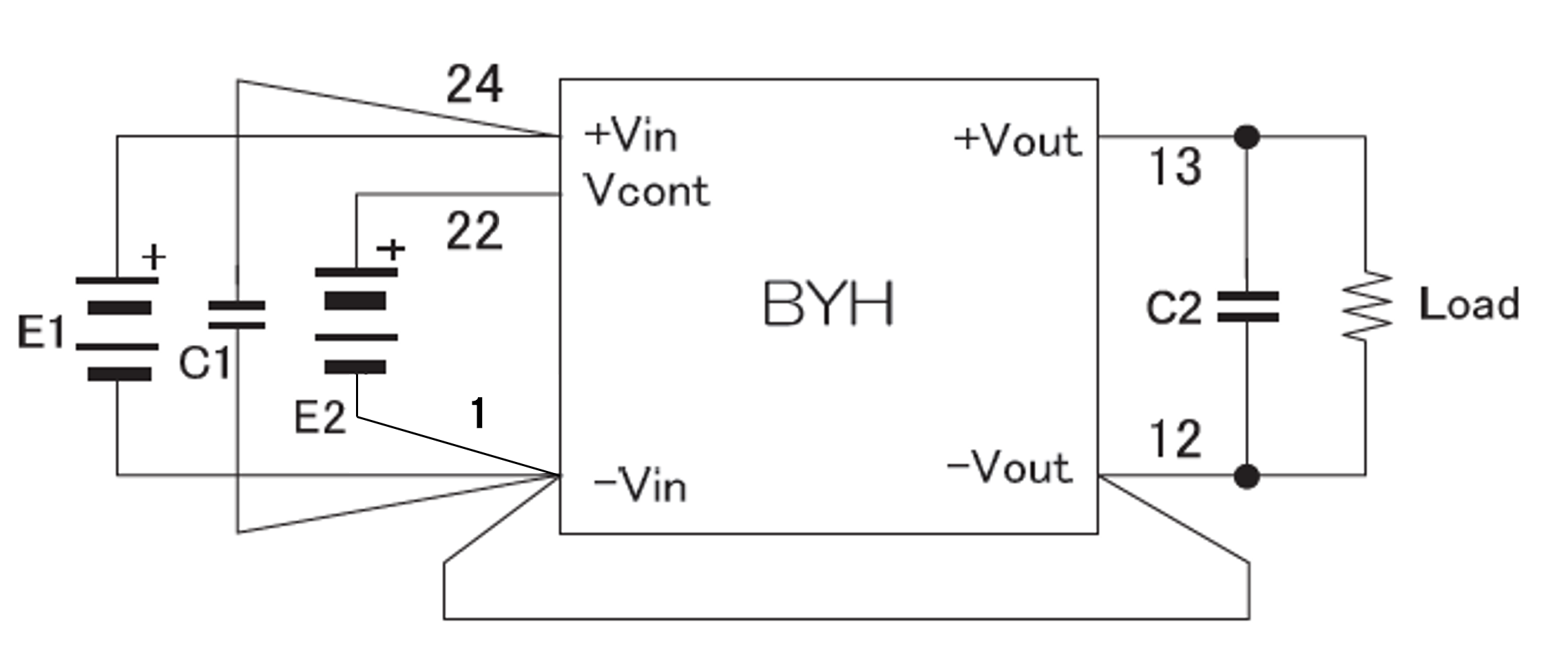

Standard Connection Schematic

・Recommended Capasitors
　C1 = 33 uF ~ 47uF (Electrolytic or Ceramic Capasitor)
　C2 = 0.1 uF (Ceramic Capasitor)
